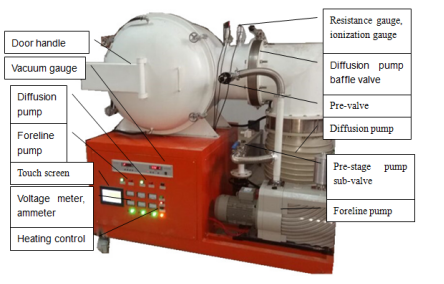

1200C-1800C laboratoire four de recuit sous vide
Le four de recuit JHP-5 utilise le fil de résistance comme éléments chauffants, qui peuvent être utilisés jusqu’à 1200℃. Ces fours à moufle compacts sont parfaits pour de nombreuses applications en laboratoire. C’est un instrument idéal pour le recuit et le frittage de matériaux dans vos recherches.
| Ⅰ. Technical Specifications | |
| Chamber size | 200x200x200mm(width*height*depth)(8Liter) |
| Max. temperature | 1200 C (<2hour) |
| Working temperature | 1100 C |
| Temperature controlling | PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, |
| current limiting resistor. | |
| 30 programmable segments for precise control of heating rate, cooling rate and dwell time. | |
| Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. | |
| Over temperature protection and alarm allows for operation without attendant. | |
| Temperature accuracy | ±1C |
| Temperature Uniformity | ±5C over 120mm @ 1100C |
| ±3C over 80mm @ 1100C | |
| Heating rate | 0-20C /min |
| Thermocouple | K type with 99.7% purity Alumina tube |
| Heating element | Quality heating wire |
| Furnace Chamber | Two layers of ceramic fiber insulation materials |
| First layer: 1430°C ceramic fiber board, density 450kgs/m3. Thermal conductivity (1200℃) | |
| is only 0.18W/m.k. | |
| Second layer: 1260°C ceramic fiber board, density 350kgs/m3. | |
| Furnace structure | Double layer steel casing with dual cooling fan, surface temperature below 60oC |
| Furnace door | Front-side open |
| Power cutting off when furnace door open | |
| Working voltage | 380V, 50HZ |
| Rated power | 5KW |
| Warranty | One year limited warranty with life time support. (Consumable parts such as heating elements |
| and crucibles are not covered by the warranty, please order the replacement at related products) | |
| ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the | |
| coverage of One Year Limited Warranty. | |
| Certifications | CE |
| Ⅱ. Application Notes | |
| Using Attentions | Cooling rate shall also not exceed 10℃ /min. |
| Toxic or explosive gases are not recommended for use with this furnace without necessary. | |
| safety controls and supervision. | |
| Small cracks may appear on the surface of the refractory ceramics over extended use. | |
| This is a normal occurrence and the cracks may be repaired with alumina coating. | |
| Stander chamber size (mm) | Refractory door block must be inserted before closing door. |
| 100x100x100 120x120x130 150x150x150 150x150x200 | |
| 200x200x200 200x200x300 250x250x300 300x300x300 | |
| 300x300x400 350x350x500 400x400x400 450x450x450 | |
| 500x500x500 600x600x600 800x800x800 900x900x900 | |
1. Température de fonctionnement: 1100℃ (1200℃ pendant une courte période).
2. L’efficacité énergétique maximale est obtenue en entourant la chambre avec une isolation en céramique à fibre d’alumine thermo-efficace.
3. Structure à double couche résistante avec ventilateur. Plus basse température dans le cas extérieur.
4. Le contrôle automatique PID via l’angle de phase de limitation de courant a déclenché la résistance, par exemple SCR (redresseur commandé par silicium).
5. Contrôle de puissance avec 51 segments programmables.
